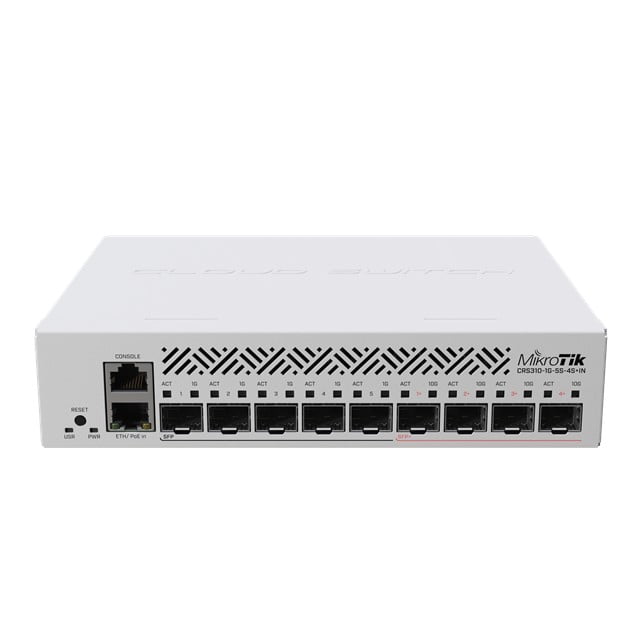

Mikrotik Switch CRS310-1G-5S-4S+IN
Rp3.421.020
10 Gigabit fibre connectivity way over a 100 meters – for small offices or ISPs. Hardware offloaded VLAN-filtering and even some L3 routing on a budget!
Deskripsi
Specifications Mikrotik Switch CRS310-1G-5S-4S+IN
| Details | |
|---|---|
| Product code | CRS310-1G-5S-4S+IN |
| Architecture | ARM 32bit |
| CPU | 98DX226S |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 200 x 166 x 45 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 8 W |
| Cooling type | 1 fan |
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 5 |
| SFP+ ports | 4 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
